> SPECIFICATION | |||
Name | UFO LED Bay Light | Item No. | HQ-UFO-320-W150 |
Power | 150W | Input | AC85-265V 50/60Hz |
Lumen | 19500LM±5% | Viewing angle | 60/90/120° |
Color temperature | 2800-10000K | Color rendering index | >80 |
Working temperature | -30~+50℃ | Storage temperature | -30~+65℃ |
Protection grade | IP54 | LED lifespan | >50,000Hrs |
Shell color | Black | Measurement | φ320*179MM |
> APPLICAITON | |
Widely used in workshop, logistics warehouse, underground parking lot, gymnasium, supermarket and etc. | |
> FEATURE | |
1. Nice exterior and with small size | |
2. Wide aluminum plate design, good heat dissipation, low light decay | |
3. Driver external, easy for maintenance | |
4. Cover optional: transparent/ frosted | |
5. Installation: Hook hanging/ Bracket | |
6. Protection grade: IP65/IP54 | |
> INSTALLATION |

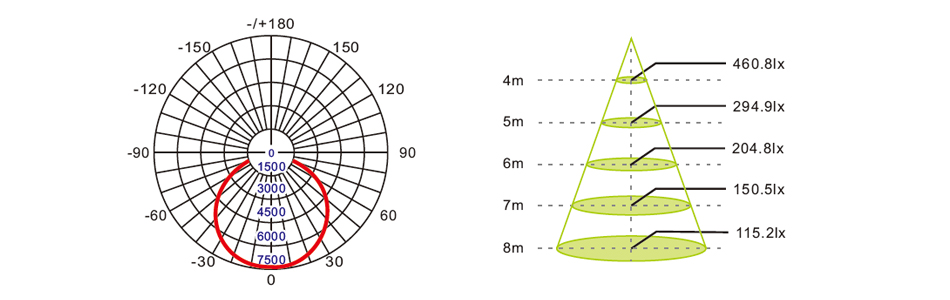

> DISTRIBUTION CURVE |

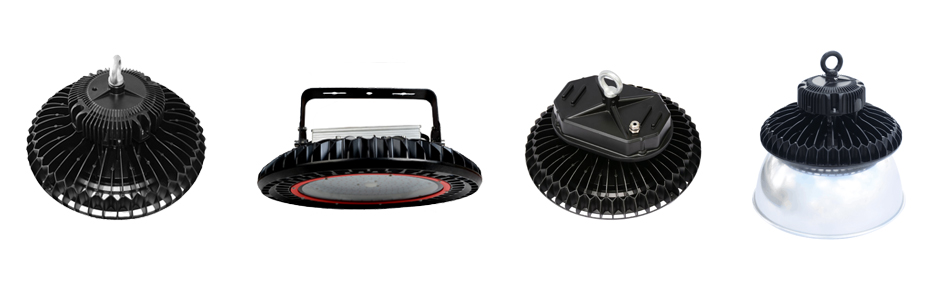

> ALL SERIES | |||
ITEM NO. | POWER | LUMEN | MEASUREMENT |
HQ-UFO-235-W50 | 50W | 6500LM±5% | φ235*164MM |
HQ-UFO-280-W80 | 80W | 10500LM±5% | φ280*184MM |
HQ-UFO-280-W100 | 100W | 13000LM±5% | φ280*184MM |
HQ-UFO-320-W150 | 150W | 19500LM±5% | φ320*179MM |
HQ-UFO-400-W200 | 200W | 25000LM±5% | φ400*200MM |
